Description
M2 Cap Head, Allen/ Hexagon Socket Screw/ Bolt, High Tensile Steel, Grade 12.9, Self Colour, DIN 912
Fixaballsells lengths of M2,Self Colour, Cap, Cylindrical Head, Allen/ Hexagon Socket, Screw/ Bolt, High Tensile Steel, Grade 12.9.
Description:M2 socket cap screw/ bolts.
Material:High Tensile Steel Grade 12.9.
Coating/ Finish:Self Colour/ Black.
Thread:Threads are metric coarse M2 x 0.4mm pitch.
Head diameter: 3.8mm.
Head height:2mm.
Allen key size:1.5mm.
Standard:DIN 912.
Note:Bolt lengths do not include the head.
What is a socket cap screw/ bolt?
The, Socket Cap Screw/ Allen Bolt, term is used to describe a fastenerthat is either fully or partially threaded. A screw is fully threaded and a bolt is partialy threaded. Some engineers may call them screws if the person uses the shorter length range of sizes. The thread stays the same length as the fastener gets longer and the maximum length of thread is equal to 2.5 times the diameter (or thereabouts). Socket, refers to the hexagon shaped indentation found on the top of the fasteners head. Here, you can use a hexagon key (Allen Key) to tighten and loosen the fastener. ‘Cap’ refers to the cylindrical shaped head.
Orders placed before 2pm are dispatchedsame day (Mon-Fri).
Standard, Free Delivery is Royal Mail, 2nd Class (2-5 days, most likely 2 days). For a faster delivery time, select 1st class or courier at checkout.
Please make your‘No. of Items in Pack’, ‘Length’and‘Quantity’of packs, selection from the drop down menus.
M2 Cap Head, Allen/ Hexagon Socket Screw/ Bolt, High Tensile Steel, Grade 12.9, Self Colour lengths available
(FT – Fully Threaded, PT– Partially Threaded)
| M2-0.40×3 MM,(FT) SOCKET HEAD CAP SCREW 12.9 COARSE ISO 4762 / DIN 912 SELF COLOUR |
| M2-0.40×5 MM,(FT) SOCKET HEAD CAP SCREW 12.9 COARSE ISO 4762 / DIN 912 SELF COLOUR |
| M2-0.40×6 MM,(FT) SOCKET HEAD CAP SCREW 12.9 COARSE ISO 4762 / DIN 912 SELF COLOUR |
| M2-0.40×8 MM,(FT) SOCKET HEAD CAP SCREW 12.9 COARSE ISO 4762 / DIN 912 SELF COLOUR |
| M2-0.40×10 MM,(FT) SOCKET HEAD CAP SCREW 12.9 COARSE ISO 4762 / DIN 912 SELF COLOUR |
| M2-0.40×12 MM,(FT) SOCKET HEAD CAP SCREW 12.9 COARSE ISO 4762 / DIN 912 SELF COLOUR |
| M2-0.40×14 MM,(FT) SOCKET HEAD CAP SCREW 12.9 COARSE ISO 4762 / DIN 912 SELF COLOUR |
| M2-0.40×16 MM,(FT) SOCKET HEAD CAP SCREW 12.9 COARSE ISO 4762 / DIN 912 SELF COLOUR |
| M2-0.40×20 MM,(FT) SOCKET HEAD CAP SCREW 12.9 COARSE ISO 4762 / DIN 912 SELF COLOUR |
| M2-0.40×25 MM SOCKET HEAD CAP SCREW 12.9 COARSE ISO 4762 / DIN 912 SELF COLOUR |
Grade 12.9 Steel has a higher carbon content than your regular 8.8 high tensile steel and is therefore better for hardness and rigidity. Zinc provides a shiny metallic finish and some resistance to weathering.
Metric Coarsethreads are in millimetre (mm) units and were developed to simplify the imperial systems.Acoarsethreadhasless helical coils per mm andis used forheavier/ higher torque loads. Coarse threads are the, ‘normal’, most common versions.

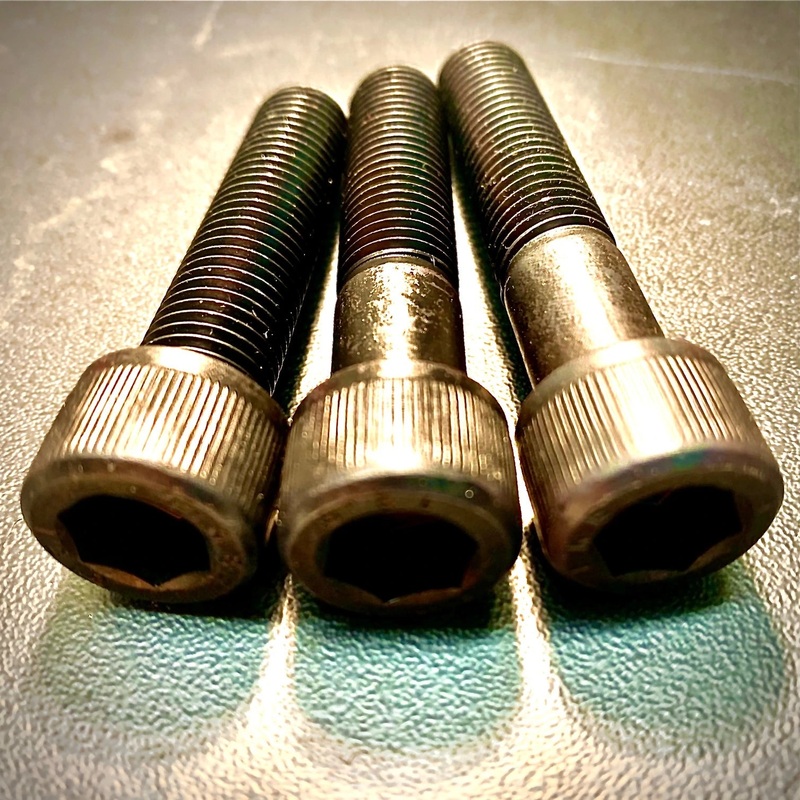

Image is for illustrative purposes only.
